For high-traffic commercial buildings, brushless DC (BLDC) automatic door motors consistently deliver superior reliability. Their design offers an extended lifespan and reduced maintenance compared to traditional brushed DC or AC motors. A brushless DC sliding door motor has a life expectancy of over 10,000 hours when operated under rated conditions. This extended lifespan significantly benefits long-term applications, reducing downtime and replacement costs. Understanding how do automatic door systems work? reveals BLDC motors as the top choice for a dependable automatic door system. This section establishes BLDC motors as the premier option, setting the stage for a deeper dive into their advantages. An automatic door systems supplier often recommends these motors for their durability and adherence to automatic door safety standards. This makes them ideal for any commercial sliding door operator.
Key Takeaways
- Brushless DC (BLDC) motors are the best choice for automatic doors in busy places. They last longer and need less repair than other motor types.
- BLDC motors save energy. They use less electricity, which lowers power bills over time.
- BLDC motors work quietly. They do not make much noise, which is good for places like hospitals or stores.
- Proper setup and regular check-ups are important. They make sure automatic doors work well and safely for a long time.
Understanding Automatic Door Motor Types
Different types of motors power automatic doors. Each motor type offers distinct characteristics. Understanding these differences helps in selecting the most reliable option for various applications.
Brushed DC Automatic Door Motors
Brushed DC motors are a traditional choice for many applications. They use carbon brushes to transfer electrical current to the motor’s rotating parts. This design is simple and cost-effective. However, the brushes wear down over time due to friction. This wear creates dust and requires regular replacement. These motors need specific maintenance routines to ensure their operation. For example, a basic maintenance plan for these motors involves visual inspections and routine cleaning. More extensive plans include detailed inspections and proactive resurfacing of components.
| Maintenance Tier | Service Life (hours) | Key Procedures |
|---|---|---|
| Basic Maintenance | 2,000-5,000 | Visual inspections, routine cleaning, brush replacement at wear limit, no commutator servicing unless issues arise. |
| Standard Maintenance | 5,000-10,000 | Detailed inspections (500-1,000 hr intervals), deep cleaning (every 1,000 hrs), in-situ resurfacing (when Ra > 1.0 μm), brush pressure verification (every 2,000 hrs), document commutator diameter. |
| Premium Maintenance | 10,000-20,000 | Detailed inspections (every 500 hrs), deep cleaning (every 500 hrs), proactive resurfacing (at Ra 1.0 μm), brush pressure checks (every 1,000 hrs), machine shop reconditioning at mid-life, armature balance verification, comprehensive data logging. |
AC Automatic Door Motors
AC motors operate on alternating current. They are known for their robustness and ability to handle heavy loads. These motors often appear in industrial settings. For automatic doors, AC motors can provide strong power. However, they typically offer less precise control compared to DC motors. Their speed control can also be more complex. This makes them less ideal for applications requiring very smooth and quiet operation.
Brushless DC (BLDC) Automatic Door Motors
Brushless DC (BLDC) motors represent a significant advancement in automatic door motor technology. They do not use brushes for commutation. Instead, an electronic controller switches the current in the motor windings. This design eliminates a common source of wear and tear. It increases efficiency and extends the motor’s operational life.
BLDC motors offer several advantages:
- Brushless DC Technology: Eliminates brushes, reducing wear and tear. This ensures consistent performance over time. It leads to an extended lifespan of up to 3 million cycles or approximately 10 years.
- Robust Aluminum Alloy Construction: Enhances durability. This allows the motor to withstand heavy-duty use. It maintains smooth operation and reliability.
- Low Maintenance Requirements: The brushless design removes the need for brush replacement or maintenance. A helical gear transmission ensures smooth, stable operation. This minimizes mechanical issues and downtime.
These features make BLDC Automatic Door Motors highly reliable for high-traffic environments.
Key Reliability Factors for High-Traffic Automatic Door Motors
Durability and Lifespan
High-traffic environments demand motors that withstand constant use. Durability refers to a motor’s ability to resist wear and tear over time. A long lifespan means the motor operates effectively for many years without failure. Factors like material quality, design engineering, and operating conditions directly impact both. Motors built with robust components and advanced engineering last significantly longer. They also perform better under continuous stress. This inherent strength reduces the need for frequent replacements and minimizes operational downtime.
Maintenance Requirements
Proper maintenance directly affects an automatic door motor’s reliability. High-traffic facilities schedule commercial door maintenance quarterly. This matches the usage level. It also allows for early identification of issues. This practice extends the life of the door and its mechanical parts. For automatic doors in high-traffic areas or those exposed to harsh weather, inspections occur more frequently than the general annual recommendation. Some organizations even require quarterly or monthly inspections. This ensures safe and efficient operation. A full professional inspection is recommended at least annually. In-house visual checks and lubrication of moving parts should happen at least quarterly. For high-cycle commercial doors in dusty environments, monthly checks are essential for these critical automatic door motors.
Performance Consistency
Consistent performance ensures smooth and reliable door operation. An automatic door motor must open and close doors smoothly and predictably every single time. Inconsistent operation leads to safety hazards for users and causes frustration. Motors with precise control systems maintain steady speed and force throughout their operation cycle. They avoid jerky movements or unexpected stops. This consistency is vital for busy commercial settings. It guarantees a seamless and safe experience for all users, enhancing the building’s overall functionality.
Energy Efficiency
Energy efficiency is a critical factor for automatic door motors, especially in high-traffic commercial buildings. Efficient motors reduce operational costs significantly over time. They also contribute to a building’s overall sustainability goals. BLDC motors offer superior energy efficiency compared to traditional options.

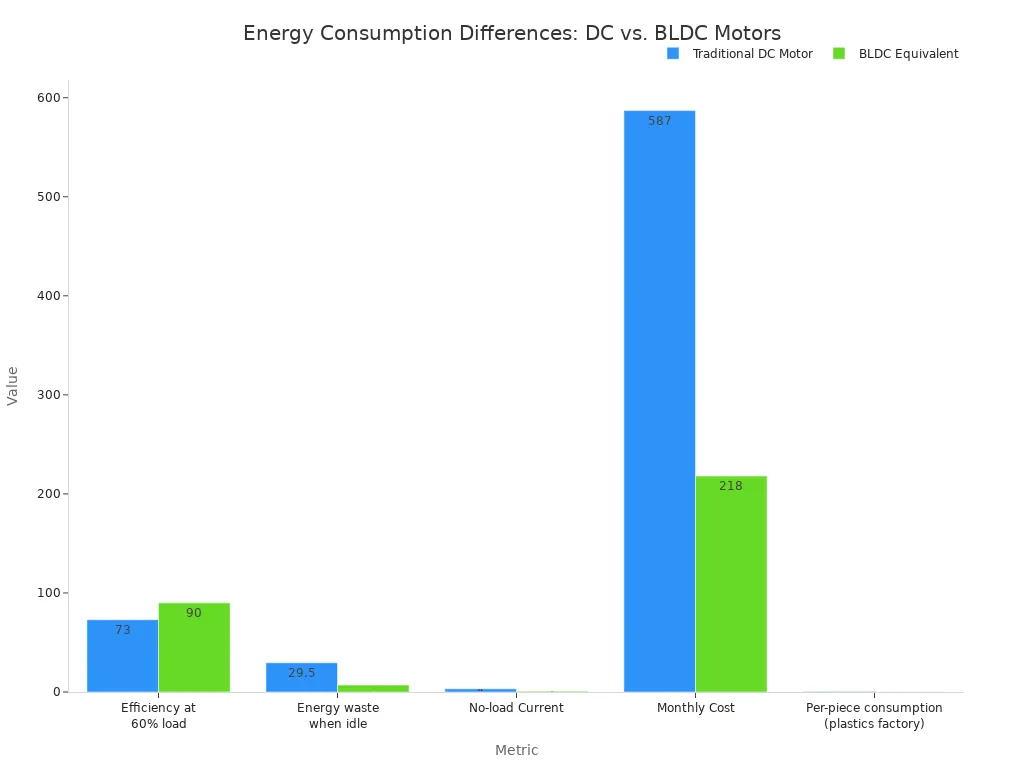

Consider the differences in energy consumption:
| Metric | Traditional DC Motor | BLDC Equivalent |
|---|---|---|
| Efficiency at 60% load | <73% | 88%-92% |
| Energy waste when idle | 25%-34% | <7% |
| No-load Current | 3.2A±0.5 | 0.8A±0.2 |
| Monthly Cost | ¥587/unit | ¥218/unit |
BLDC motors increase efficiency by 18%, achieving an EER of 4.8. They can reduce overall energy consumption by 41%, consuming only 0.27 degrees of power per unit. This translates into substantial savings. AC motors generally consume about 30% more energy than DC motors. This makes DC motors, especially BLDC types, a more economical choice. The chart below visually represents these energy consumption differences.
Choosing energy-efficient motors lowers utility bills. It also reduces the carbon footprint of the building.
Noise Levels
Noise levels are another important consideration for automatic doors in commercial settings. A quiet operation enhances the user experience. It also maintains a peaceful environment, especially in places like hospitals, offices, or retail stores. Loud, clunky doors can be disruptive and create a negative impression.
Traditional brushed DC motors often produce more noise due to the friction between brushes and the commutator. AC motors can also generate noticeable operational sounds. BLDC motors, however, operate much more quietly. Their brushless design eliminates mechanical friction from brushes. This results in smoother and quieter movement. The electronic commutation system allows for precise control. This minimizes vibrations and reduces operational noise. For environments where quietness is essential, BLDC motors are the preferred choice. They ensure doors open and close almost silently.
Why BLDC Automatic Door Motors Excel in High-Traffic Settings
Brushless DC (BLDC) automatic door motors offer significant advantages in busy environments. Their design addresses common issues found in other motor types. This leads to greater reliability and efficiency.
Absence of Wearable Parts
BLDC automatic door motors stand out because they lack wearable parts. Traditional brushed DC motors use carbon brushes. These brushes transfer electrical current to the motor’s rotating parts. Over time, friction causes these brushes to wear down. This creates dust and requires regular replacement. BLDC motors eliminate this problem. They do not use brushes for current transmission. This design removes the most common wear component.
The absence of brushes means less friction and noise. This contributes to silent operation. It also leads to a longer service life. BLDC motors achieve increased longevity. They require minimal upkeep. For example, standard brushless DC motor units only need bearing maintenance every 20,000+ hours. This significantly reduces maintenance needs. It also minimizes downtime, which is crucial in industrial settings.
Superior Heat Dissipation
Heat is a major enemy of motor longevity. BLDC motors manage heat very well. Inner rotor BLDC motors are known for their good heat dissipation. This helps them perform well in applications needing quick acceleration and high speeds. This characteristic improves their overall performance.
Effective thermal management is key for reliability. Future advancements in BLDC gear motor technology will focus on even better cooling. This includes improved cooling techniques and materials. These innovations will lead to higher continuous power output. They will also increase reliability and extend motor lifespan. They achieve this by dissipating heat more effectively. Ensuring adequate airflow around the motor helps with cooling. External cooling solutions, like fans or heat sinks, can also help. These are especially useful for motors working near their thermal limits. Improved heat sink designs, liquid cooling channels, and materials with higher thermal conductivity are all part of this effort.
Precise Control and Smooth Operation
BLDC motors offer precise control. This ensures smooth and consistent door operation. Controllers regulate motor speed by adjusting voltage and switching frequency. This allows stable operation at both very low and very high speeds. Speed remains constant even when loads change. This ensures accuracy in many applications.
Advanced control techniques make this precision possible. Field-Oriented Control (FOC), also known as Vector Control, is one such technique. It allows independent control over torque and flux. This method delivers superior performance and smoother operation. It also provides higher efficiency. Controllers enable instant reversal of motor direction. They do this by altering the switching sequence. They also allow precise control of rotor position. This is important for servo applications and complex movements.
Other control algorithms also enhance performance. A PID Controller regulates motor speed. It uses proportional, integral, and derivative components in feedback loops. This effectively manages dynamic changes. It ensures reliable and responsive speed control. A Fuzzy Logic Controller (FLC) improves performance in unpredictable systems. It uses a rule-based method to convert input variables into control signals. FLCs handle load and voltage variations efficiently. They minimize sudden changes in motor operation. This is essential for high-precision applications.
Lower Total Cost of Ownership
Businesses often look beyond the initial purchase price when investing in equipment. They consider the total cost of ownership (TCO). This includes all expenses over the product’s lifespan. Brushless DC (BLDC) automatic door motors offer a lower TCO compared to other motor types. This makes them a smart long-term investment.
The initial cost of a BLDC motor might seem higher. However, its design leads to significant savings over time. These savings come from several key areas:
- Reduced Maintenance Needs: BLDC motors do not have brushes. This eliminates the need for brush replacement. It also removes the dust and wear associated with brushes. This means fewer service calls and less money spent on parts. Maintenance schedules become simpler and less frequent. This directly lowers operational costs.
- Lower Energy Consumption: BLDC motors are highly energy-efficient. They use less electricity to operate. This translates into lower utility bills each month. Over many years, these energy savings add up to a substantial amount. This contributes significantly to a lower TCO.
- Extended Lifespan: BLDC motors last much longer than brushed DC or AC motors. Their durable design and lack of wearable parts mean they operate reliably for millions of cycles. A longer lifespan means businesses replace motors less often. This reduces the cost of new equipment and installation labor.
- Minimized Downtime: High-traffic environments rely on doors working constantly. BLDC motors are very reliable. They experience fewer breakdowns. This reduces costly downtime. When a door stops working, it can disrupt business operations. It can also lead to lost revenue. BLDC motors help avoid these problems.
Consider a typical commercial building. It might operate its automatic doors thousands of times each day. Over a decade, the cumulative savings from reduced maintenance, lower energy use, and fewer replacements become very clear. BLDC automatic door motors provide excellent value. They deliver superior performance and reliability. They also ensure a lower overall expense for the building owner. This makes them the most economical choice in the long run.
Advanced Features Enhancing Automatic Door Motor Reliability
Modern automatic door systems incorporate advanced features. These features significantly boost motor reliability. They ensure consistent performance and reduce maintenance needs.
Integrated Control Systems
Integrated control systems combine motor drive and control electronics. This design offers several benefits for automatic doors. It reduces wiring complexity, simplifying installation. Closed-loop feedback provides precise control of door position and speed. This ensures smooth movement and minimizes mechanical stress. Such precision is crucial for quiet operation. Built-in safety protocols protect against overloads and jams. This prevents damage to the motor and door mechanism. Modular connectivity allows easy integration with building management systems.
Integrated servo motors consume less energy. They deliver torque only when needed. This reduces operational costs. It also supports green building certifications. Enhanced safety features include built-in torque and speed control. This allows the motor to detect obstructions. It adjusts operation instantly, preventing accidents in high-traffic environments.
| Feature | Benefit in Automatic Doors/Windows |
|---|---|
| Integrated drive and control | Reduced wiring, simpler installation |
| Closed-loop feedback | Precise control of position and speed |
| Built-in safety protocols | Protection against overloads and jams |
| Modular connectivity | Easy integration with building management systems |
Sensor Technology for Optimal Performance
Sensor technology plays a vital role in automatic door reliability. Presence sensors detect people or objects in the door’s path. This prevents collisions and ensures user safety. Safety beams provide an additional layer of protection. They stop the door from closing if an obstruction breaks the beam. Speed sensors monitor the door’s opening and closing speed. This allows the system to maintain optimal performance. It also ensures smooth and consistent operation. Advanced sensors can even adapt door behavior to environmental conditions. This includes wind or heavy traffic.
Self-Diagnostic Capabilities
Self-diagnostic capabilities significantly reduce downtime for automatic door motors. These features provide real-time monitoring of motor performance. They detect potential issues early. This includes mechanical wear, electrical faults, or sensor malfunctions. Early detection prevents these issues from becoming critical failures. This enables timely maintenance and repairs. It ensures continuous operation. Self-diagnostic systems minimize unplanned outages. They reduce overall maintenance effort. This feature is crucial in environments where downtime is unacceptable. It prevents sudden failures by alerting maintenance teams to issues. The System 4® controller, for example, offers total digital control and self-diagnostics. This minimizes maintenance surprises.
The Role of Gearboxes and Drive Mechanisms in Automatic Door Motors
Gearboxes and drive mechanisms are essential components in automatic door systems. They translate the motor’s power into the precise movement needed for opening and closing doors. Their design and quality directly affect the door’s reliability and performance.
Types of Gearboxes
Several gearbox types pair with automatic door motors. Common options include planetary gearboxes, spur gearboxes, and worm wheel gearboxes. Other systems use worm gearing, bevel gearing, hypoid gearing, and spur gears. Planetary gear systems are also widely used. Each type offers different characteristics regarding torque, speed reduction, and efficiency.
Importance of Robust Drive Systems
Robust drive systems are crucial for reliable automatic door operation. High-performance servo planetary gearboxes, such as the PLG 45 SL and PLG 75 SL, significantly enhance reliability and efficiency. These gearboxes feature steel ring gears and achieve efficiency rates up to 95%. This ensures maximum performance and durability. Their optimized design allows for a service life exceeding 20,000 operating hours. This makes them ideal for continuous operation. Predictive maintenance capabilities within the motor further boost reliability. This system detects early anomalies in mechanical components, including the gearbox. It provides clear maintenance signals through intelligent data analysis. This enables proactive service decisions. It ensures maximum transparency and minimal effort. This extends the lifespan and consistent operation of the automatic door system. Compact and efficient drive solutions, like the GR 63 brushed DC motor with the SG worm gearbox, are leading choices. They provide long service life and smooth, low-noise operation. Robust systems also include features like automatic door reversal upon obstacle detection. They offer a manual release option for power outages. DC motors provide quieter, more efficient operation and precise control.
Material Selection for Durability
Material selection greatly impacts the durability of these components. Switching gear material from brass to a high-reliable stainless steel alloy significantly improves durability. This modification helps meet a target of 50,000 cycles. High-quality aluminum alloy is also used for critical components. This ensures durability and structural stability. Stainless steel is another choice for critical parts. It offers superior corrosion resistance. High-grade aluminum alloy is specifically used for parts like the STOPPER, HANGER, and BELT CONNECTOR. It resists moisture, rust, and chemical wear.
Installation and Maintenance for Optimal Automatic Door Motor Performance
Proper installation and consistent maintenance are crucial for the long-term reliability of any automatic door system. These practices ensure optimal performance and extend the lifespan of the motor and its components.
Professional Installation Best Practices
Professional installation sets the foundation for reliable automatic door operation. Technicians follow critical steps to ensure safety and functionality. They first disconnect power and prepare the work area. Then, they remove the old motor unit and disconnect its drive system. Installers inspect and prepare hardware like tracks, rails, and mounting brackets, replacing any damaged parts. They secure the new motor and connect it to the drive system. Next, they reconnect wiring and align safety sensors. Finally, they test and adjust the system. This includes powering on the opener, adjusting operation, setting travel limits, and fine-tuning force settings for smooth performance.
Professionals also avoid common mistakes that can compromise reliability:
- Skipping balance checks leads to premature strain on the new motor.
- Improper wiring causes shorts, tripped breakers, or motor failure.
- Ignoring safety features, such as misaligned sensors, prevents proper door closure.
- Loose mounting hardware creates noise and wear due to vibrations.
Installers ensure safety features like photoelectric sensors and auto-reverse pressure sensitivity are correctly configured. They also educate customers on proper operation and maintenance.
Scheduled Preventative Maintenance
Regular preventative maintenance keeps automatic door systems running smoothly. A comprehensive schedule includes inspecting several key components:
- Activation zone
- Presence zone
- Opening & closing speed
- Holding beams
- Breakout mechanism
- Signage
- Bottom guides/track rollers
- Door operator/microprocessor control
- Activation/presence sensor
These checks help identify potential issues before they become major problems, ensuring consistent performance and safety.
Troubleshooting Common Issues
Even with proper maintenance, issues can arise. Knowing how to troubleshoot common problems helps minimize downtime.
- Motor Not Opening or Closing: Check the power supply, including the circuit breaker or solar panel/battery. Inspect safety sensors for obstructions or misalignment. Examine the remote control or wall button for dead batteries or faulty wiring. Also, look for manual lock engagement.
- Motor Moving Partially or Erratic: Adjust limit switches to define open and closed positions. Inspect tracks for obstructions or damage. Check for worn rollers or hinges and verify spring tension.
- Motor Making Unusual Noises: Lubricate moving parts to address squeaking, grinding, or rattling. Inspect for loose bolts or components. Check for worn gears or bearings.
- Motor Reverses Unexpectedly: Clean and align safety sensors. Adjust force settings.
- Remote or Wall Button Not Working: Replace batteries. Reprogram the remote control. Inspect wiring to the wall button.
Selecting the Right Automatic Door Motors: A Decision Framework
Choosing the correct automatic door motor requires careful consideration. Building managers must evaluate several factors. This ensures optimal performance and long-term satisfaction.
Assessing Traffic Volume and Cycle Count
Traffic volume and cycle count are critical considerations. High-traffic areas, like retail entrances or hospital lobbies, demand motors built for continuous operation. Each time a door opens and closes, it completes one cycle. A motor in a busy location performs thousands of cycles daily. This constant use puts significant stress on the motor’s components. Selecting a motor designed for high cycle counts ensures durability. It prevents premature wear and failure. BLDC motors, for example, offer an extended lifespan suitable for these demanding environments.
Budgeting for Long-Term Value
Initial cost is only one part of the investment. Businesses should consider the total cost of ownership. High-quality automatic door motors offer long-term value. They enhance property security and increase property value. A well-maintained automatic door makes a property more attractive. Modern openers provide convenience and ease of access. They eliminate the need for manual operation. Customization and integration features, like smartphone controls, improve convenience and overall value. High-quality motors are durable and last many years with proper maintenance. This ensures a long-term return on investment. Energy-efficient motors, especially modern DC types, use up to 30% less energy than traditional AC motors. This leads to significant cost savings over time. New models also minimize energy consumption when idle, reducing hidden energy drains.
Manufacturer Reputation and Warranty
A manufacturer’s reputation and warranty are vital indicators of product quality. Reputable manufacturers offer reliable products and excellent support. They demonstrate strong performance and reliability under various conditions. They also provide good after-sales support and clear warranty terms. Companies like Bosch, Denso, and Continental are known for innovative and reliable solutions. Evaluating a manufacturer involves looking at their technological innovation, supply chain reliability, and regulatory compliance. High buyer reorder rates also indicate strong supplier performance. A comprehensive warranty protects the investment. It covers potential defects or failures. This provides peace of mind and reduces unexpected repair costs.
Consulting with Industry Experts
Seeking advice from industry experts provides invaluable guidance when selecting automatic door motors. These specialists offer deep knowledge of various motor types and their applications. They help building managers make informed decisions. Experts understand the specific demands of high-traffic environments. They recommend solutions that ensure long-term reliability and efficiency.
Qualified experts possess specific credentials. They complete accredited courses. They also accumulate hands-on experience in automation systems. These professionals successfully pass comprehensive certification exams. These exams assess their technical proficiency and practical application of concepts. Meeting specific educational and experiential requirements, which vary by certifying body and specialization, is also crucial. Many pursue advanced certifications or further education for higher-level positions and specialized roles.
Look for experts holding an Automation Systems Specialist certification. This involves understanding control systems, mechatronics, and emerging technologies like AI and IoT. Micro-credentials, such as those offered by SACA (Smart Automation Certification Alliance), are also highly regarded in the automation industry. Continuous professional development is essential for these experts. This includes ongoing training, industry workshops, and staying updated with new technologies. They remain aware of advancements like integrating AI and IoT in automation systems. They also understand the impact of Industry 4.0 on industrial automation. Their expertise ensures the chosen motor meets all operational and safety requirements.
Brushless DC motors consistently prove the most reliable choice for high-traffic commercial automatic doors. Their inherent design provides superior durability, requires less maintenance, and ensures better long-term performance. The motor is crucial. However, a holistic approach also considers control systems, proper installation, and consistent maintenance. This comprehensive strategy guarantees ultimate reliability for any automatic door system.
FAQ
What makes BLDC motors more reliable for automatic doors?
BLDC motors do not have brushes. This eliminates wear and tear from friction. It also reduces maintenance needs. This design leads to a longer lifespan and consistent performance. They operate reliably for millions of cycles.
How do BLDC motors save energy?
BLDC motors are highly energy-efficient. They use less electricity to operate. This reduces utility bills over time. They also consume minimal power when idle. This contributes to significant long-term cost savings.
Are BLDC motors noisy?
No, BLDC motors operate very quietly. Their brushless design eliminates mechanical friction. This results in smoother and quieter movement. The electronic control system minimizes vibrations. This makes them ideal for environments needing quiet operation.
Why is professional installation important for automatic door motors?
Professional installation ensures proper setup and alignment. It prevents common mistakes that cause premature wear or failure. Experts also configure safety features correctly. This guarantees reliable operation and user safety from the start.
