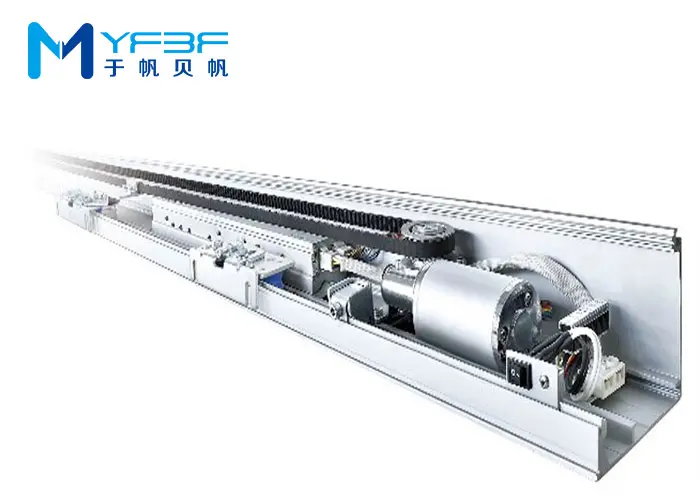

Automatic Sliding Door operator is installed in the space above the sliding door. A motor, geared down to get a lower speed and a higher torque, drives a pulley at one end of a belt. The door is clamped to the belt. To open the door, the motor turns the pulley, which in turn turns the belt, which in turn drags the door. To close the door, the reverse occurs.
| Model | YF150 |
| Max Door Weight (single) | 1*300 kgs |
| Max Door Weight (Double) | 2*200 kgs |
| Door leaf width | 700-1500mm |
| Opening speed | 150 – 500 mm/s (adjustable) |
| Closing speed | 100 – 450 mm/s (adjustable) |
| Motor Type | 24v 60W Brushless DC Motor |
| Open time | 0 – 9 second (adjustable) |
| Voltage | AC 90 – 250V , 50Hz – 60Hz |
| Operating Temperature | -20°C ~ 70°C |

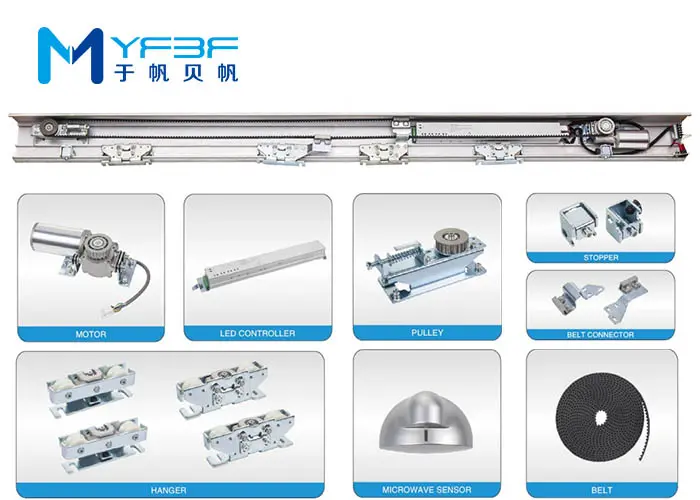

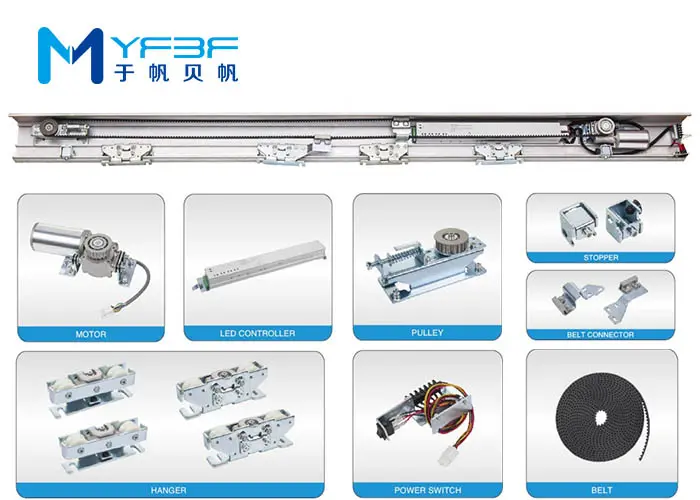

1pc Motor
1pc Control unit
1pc Power switch
1pc Idler pulley
4pcs Hanger
2pcs Belt tooth clip
2pcs Stopper
1pc 7m belt
2pcs 24GHz Microwave sensor
1set 4.2m rail
1. High performance at an attractive price
2. Logical layout and optimal mechanical configuration
3. When the power is off, can choose the backup batteries to keep the door in normal operation
4. Compact size, exquisite and modern design, with optimum functionality
5. Intelligent microprocessor control system with self-learning and self-checking functions
6. Simple to programmed and monitor
7. Can be adjusted to accommodate the demands of many different environments
8. Safe and reliable, reverse opening if an obstruction is in the way of door opening or closing
9. Space-efficient and users friendly
10. High safety, durability and flexibility
11. Suitable for offices, shops, cafes, clubs, etc.
12. Easy to maintain, adjust and repair

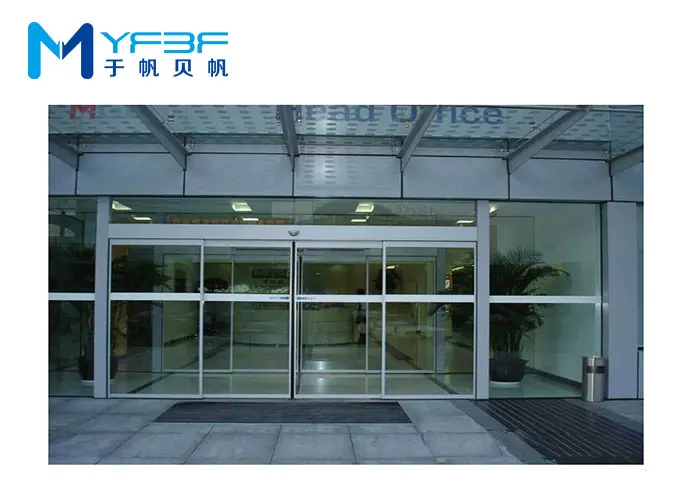

Automatic sliding door operators are widely used in Hotel, Airport, Bank, Shopping Mall, Hospital, Commercial building and etc.
| Place of Origin: | Ningbo, China |
| Brand Name: | YFBF |
| Certification: | CE, ISO |
| Model Number: | YF150 |
| Minimum Order Quantity: | 10SETS |
| Price: | Negotiation |
| Packaging Details: | Carton, Wooden case |
| Delivery Time: | 15-30 Workdays |
| Payment Terms: | T/T, WESTERN UNION, PAYPAL |
| Supply Ability: | 3000SETS PER MONTH |
Automatic door manufacturing, commitment to product development, design, manufacturing and related
production of metal accessories in Luotuo Zhenhai Distric, has an independent production base and experimental
bases.
