Automatic Sliding Glass Door Motor is drive device for sliding doors, with silent operation, large torque, long working life and high efficiency. It adopts European technology to integrate motor with gear box, which offers strong driving and reliable operation and increased power output, it can adapt to a large doors. Helical gear transmission in the gear box ensures the stable and reliable operation, even used for heavy door, the whole system operates easily.
The control device of sliding automatic door contains basic function and extensional function, automatic operation/hold-open/closed/half-open to meet customer needs. Opening/closing speed setting and adjustment is accurately controlled by microcomputer controller.

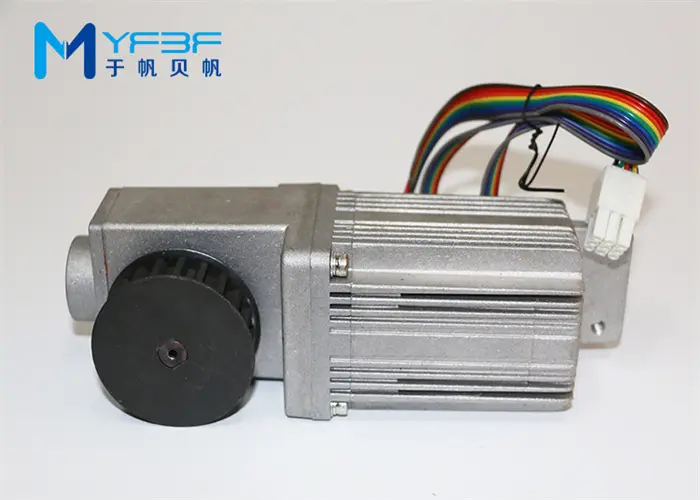

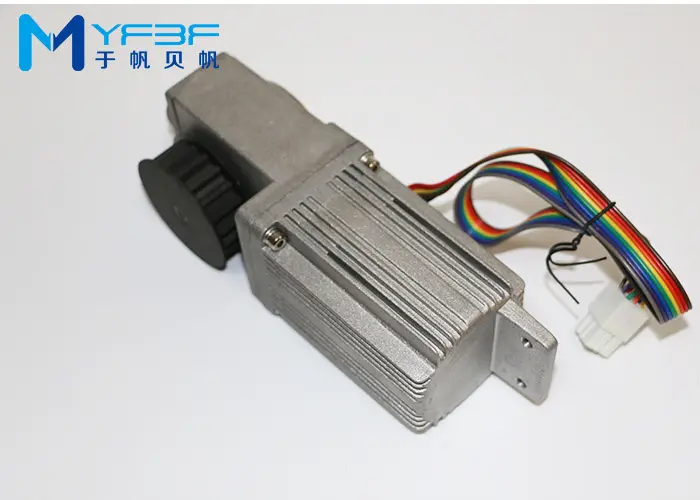

Commercial Automatic Sliding Glass Doors 24V Brushless DC Motor:
1, we adopt brushless DC technology, service life of the brushless DC motor is longer than the brush motor, and it can be with better reliability.
2, small volume, strong power, powerful working force
3, ultra-quiet sound design, low noise, small vibration, we adopt the automatic lubrication technology.
4, it is made with high-strength aluminum alloy material, strong and durable
5, it can work with the bearing metal alloy wheel driving belt, and with good quality, stability and high applicability.
| Model | YFS150 |
| Rated Voltage | 24V |
| Rated Power | 60W |
| No-load RPM | 2880 RPM |
| Gear Ratio | 1:12 |
| Noise Level | ≤50dB |
| Weight | 2.2KGS |
| Protection Class | IP54 |
| Certificate | CE |
| Lifetime | 3 million cycels, 10years |
1. Longer life than commutated motors from other manufacturers
2. Low detent torques
3. High efficiency
4. High dynamic acceleration
5. Good regulation characteristics
6. High power density
7. Maintenance-free
8. Robust design
9. Low moment of inertia
10. Motor insulation class E
11. Winding insulation class F
| Place of Origin: | China |
| Brand Name: | YFBF |
| Certification: | CE, ISO |
| Model Number: | YFS150 |
| Minimum Order Quantity: | 50PCS |
| Price: | Negotiation |
| Packaging Details: | Stardard Carton, 10PCS/CTN |
| Delivery Time: | 15-30 Workdays |
| Payment Terms: | T/T, WESTERN UNION, PAYPAL |
| Supply Ability: | 30000PCS PER MONTH |
