A sliding door operator reopens the door if it closes into an obstacle. However, most operators use sensors to prevent the door from ever coming into contact with a user in the first place.
The simplest sensor is a light beam across the opening. An obstacle in the path of the closing door breaks the beam, indicating its presence. Infrared and radar safety sensors are also commonly used.

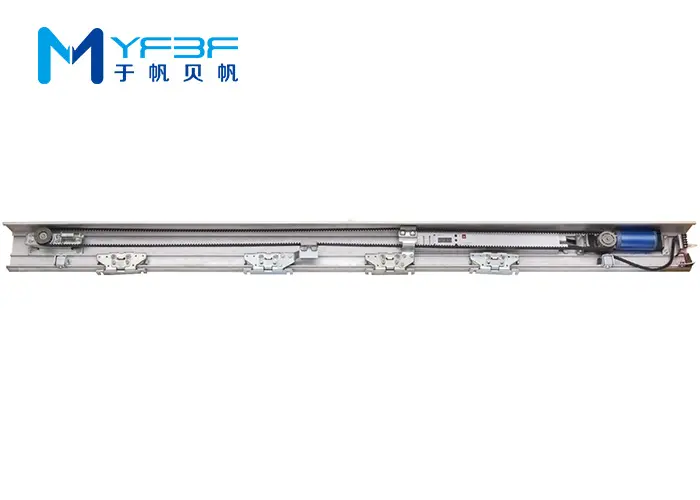

| Model | BF150 |
| Max Door Weight (single) | 1*200 kgs |
| Max Door Weight (Double) | 2*150 kgs |
| Door leaf width | 700-1500mm |
| Opening speed | 150 – 500 mm/s (adjustable) |
| Closing speed | 100 – 450 mm/s (adjustable) |
| Motor Type | 24v 60W Brushless DC Motor |
| Open time | 0 – 9 second (adjustable) |
| Voltage | AC 90 – 250V , 50Hz – 60Hz |
| Operating Temperature | -20°C ~ 70°C |

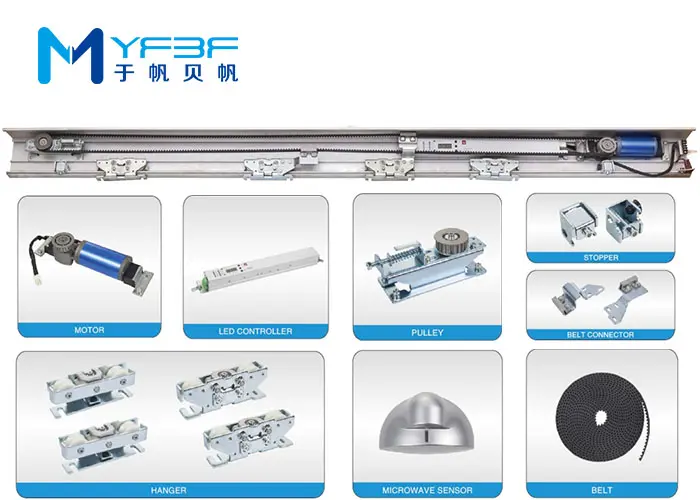

1pc Motor
1pc Control unit
1pc Power switch
1pc Idler pulley
4pcs Hanger
2pcs Belt tooth clip
2pcs Stopper
1pc 7m belt
2pcs 24GHz Microwave sensor
1set 4.2m rail
1. Can be adjusted to accommodate the demands of many different environments
2. Safe and reliable, reverse opening if an obstruction is in the way of door opening or closing
3. Compact size, exquisite and modern design, with optimum functionality
4. Intelligent microprocessor control system with self-learning and self-checking functions
5. When the power is off, can choose the backup batteries to keep the door in normal operation
6. Suitable for offices, shops, cafes, clubs, etc.
7. Easy to maintain, adjust and repair
8. Space-efficient and users friendly
9. High safety, durability and flexibility
10. Simple to programmed and monitor
11. High performance at an attractive price
12. Logical layout and optimal mechanical configuration
Automatic sliding door operators are widely used in Hotel, Airport, Bank, Shopping Mall, Hospital, Commercial building and etc.
| Place of Origin: | Ningbo, China |
| Brand Name: | YFBF |
| Certification: | CE, ISO |
| Model Number: | BF150 |
| Minimum Order Quantity: | 10SETS |
| Price: | Negotiation |
| Packaging Details: | Carton, Wooden case |
| Delivery Time: | 15-30 Workdays |
| Payment Terms: | T/T, WESTERN UNION, PAYPAL |
| Supply Ability: | 3000SETS PER MONTH |
Automatic door manufacturing, commitment to product development, design, manufacturing and related
production of metal accessories in Luotuo Zhenhai Distric, has an independent production base and experimental
bases.
