An Automatic Sliding Door Operator is a device that enables doors to open and close automatically. This technology enhances accessibility by allowing individuals to enter and exit buildings without using their hands. It significantly improves convenience, especially in high-traffic areas. Understanding this technology is crucial for selecting the right operator, such as a silent sliding door operator or an energy saving sliding door operator, to meet specific needs. Additionally, knowing when to replace sliding door operator parts can ensure optimal performance, and having a sliding door drive system in place can further enhance the functionality of these doors. Furthermore, a sliding door operator parts breakdown can help in identifying which components may need attention or replacement over time.
Key Takeaways
- Automatic sliding door operators enhance accessibility, allowing hands-free entry and exit for everyone, including individuals with mobility challenges.
- Regular maintenance, including inspections and lubrication, is essential for optimal performance and longevity of automatic sliding door operators.
- Choosing the right type of automatic sliding door operator depends on factors like traffic volume, door size, and specific environmental conditions.
- Safety features such as sensors and emergency stop buttons ensure user protection and compliance with safety standards.
- Investing in automatic sliding door technology can improve energy efficiency, reduce costs, and enhance the overall aesthetic appeal of buildings.

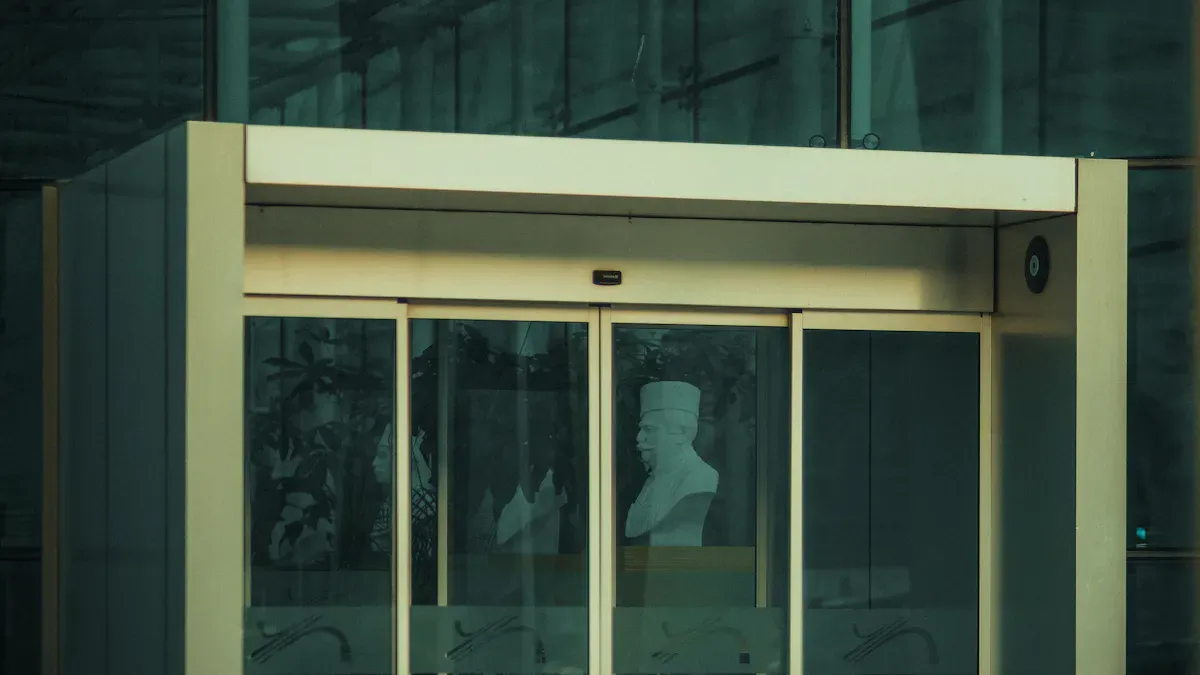

How Automatic Sliding Door Operators Work
Basic Mechanism
Automatic sliding door operators function through a combination of electromechanical systems designed to automate door movement. The core components include a DC motor, which provides the necessary power to move the door. This motor connects to a worm gear box, translating rotational motion into the linear movement required for sliding the door open and closed. The main controller manages the operation, while various sensors detect the presence of individuals approaching the door. Key components involved in the basic mechanism include:
- Main controller
- Sensors
- Power brushless motors
- Automatic sliding door track
- Door hanger
- Synchronous belt
- Lower part of the guidance system
These components work in unison to ensure efficient operation of the automatic sliding door operator.
Sensors and Activation
Sensors play a crucial role in the activation of automatic sliding door operators. They detect the presence of individuals and trigger the door’s movement. Common types of sensors include:
-
Infrared Sensors: These sensors detect interruptions in an emitted infrared light beam. They can be further categorized into:
- Active Infrared Sensors: Emit infrared beams and are sensitive to movement, making them ideal for high-traffic areas.
- Passive Infrared Sensors: Detect infrared radiation from warm objects, offering a cost-effective solution for low-traffic settings.
-
Ultrasonic Sensors: Utilize high-frequency sound waves to detect movement, proving effective in low-light conditions.
-
Microwave Sensors: Emit microwave signals to detect movement through non-metallic materials, suitable for challenging environments.
-
Laser Sensors: Employ laser beams for precise movement detection, often used in industrial applications.
Motion sensors activate when they detect moving objects, while presence sensors can detect both moving and stationary individuals. This distinction allows presence sensors to keep the door open when someone is in the threshold area, enhancing safety.
Safety Features
Safety is paramount in the design of automatic sliding door operators. These systems must comply with various safety standards to ensure user protection. Common safety features include:
| Safety Feature | Description |
|---|---|
| Sensor Systems for Obstacle Detection | Infrared sensors detect obstacles and reverse the door’s direction to prevent collisions. |
| Microwave Motion Sensors | Detect motion near the door, ensuring it opens in time for users. |
| Pressure Sensors | Detect pressure changes to stop or reverse the door if an object is in its path. |
| Safety Beams | Create an invisible barrier that stops or reverses the door when interrupted. |
| Light Curtains | Multiple infrared beams that stop the door when any beam is interrupted. |
| Emergency Stop Button | Allows immediate halting of the door’s operation in emergencies. |
| Manual Override | Enables manual operation of the door during power failures or malfunctions. |
| Compliance with Safety Standards | Adherence to ANSI/BHMA and EN 16005 standards ensures safety in public use. |
| Slow Speed Mode | Reduces door movement speed for safer passage, especially in sensitive environments. |
| Soft Start and Stop | Ensures smooth door operation to minimize sudden movements. |
| Visual and Audible Alerts | Warn users when the door is about to open or close, preventing accidental collisions. |
These features not only enhance safety but also ensure compliance with regulations, making automatic sliding door operators a reliable choice for various environments.

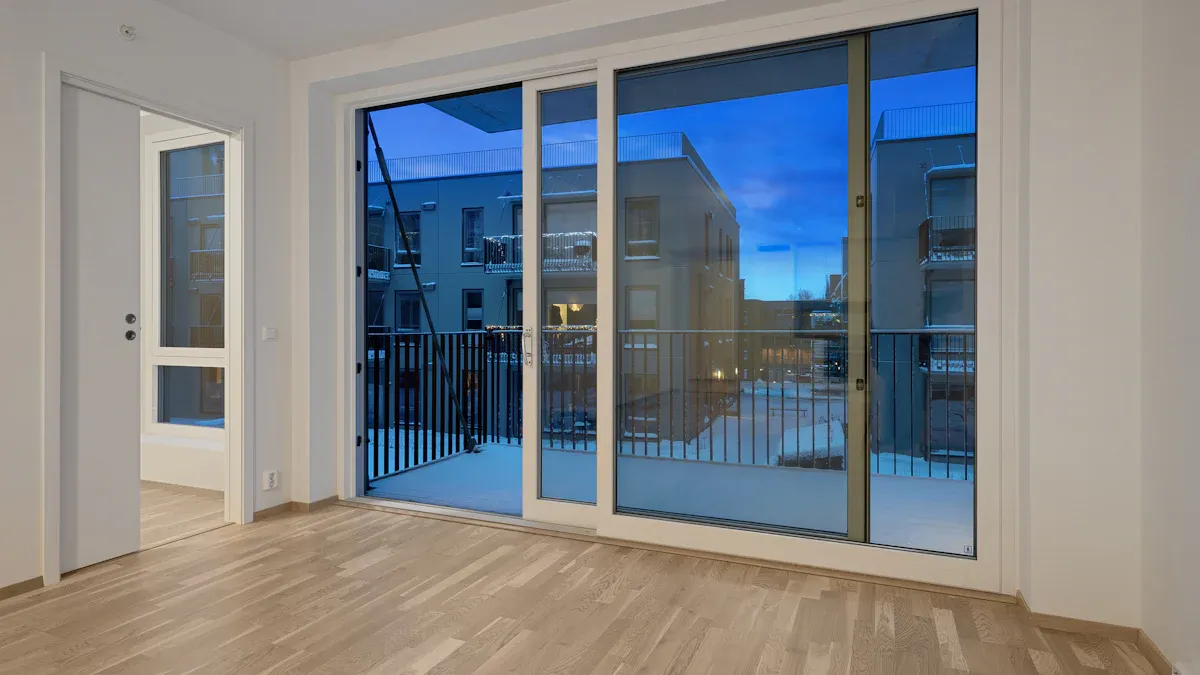

Types of Automatic Sliding Door Operators
Standard Operators
Standard automatic sliding door operators are designed to slide open and closed along a track. This design makes them ideal for environments with limited space, such as retail stores and hotels. They provide a seamless entry and exit experience for customers and staff alike. Standard operators typically support a range of load capacities, which can be summarized in the following table:
| Gate sliding modes | Single-opening | Double-opening |
|---|---|---|
| Gate leaf weight | ≤1*155 kg | ≤2*145 kg |
| Gate leaf width | 600-1200mm | 500-1100mm |
| Opening speed | 150-600mm/s (Adjustable) | 150-550mm/s (Adjustable) |
| Closing speed | 120-550mm/s (Adjustable) | 120-500mm/s (Adjustable) |
| Motor | 24V 60/100W brushless DC motor | N/A |
| Hold open time | 0-9 seconds (Adjustable) | N/A |
| Special Function | Security, Hermetic | N/A |
| Voltage | AC220V 50Hz-60Hz | N/A |
| Operating Temperature | -20°C~60°C | N/A |
Heavy-Duty Operators
Heavy-duty automatic sliding door operators cater to environments that require robust performance. They are commonly found in warehouses, factories, healthcare facilities, and manufacturing plants. These operators differ in durability and performance compared to standard models. The following table highlights key differences:
| Feature | Belt-Driven Systems | Chain-Driven Systems |
|---|---|---|
| Durability | Less robust under heavy loads; can stretch | Extremely strong; resists stretching and breaking |
| Performance | Quieter operation; smoother movement | Increased noise; requires more maintenance |
| Maintenance Needs | Less lubrication required | More regular lubrication needed |
| Ideal Use Case | Suitable for lighter doors | Best for heavy doors and industrial applications |
Low-Energy Operators
Low-energy automatic sliding door operators are designed for energy efficiency. They reduce air infiltration and heat loss, which improves overall energy efficiency. Key features include:
- Motion-Activated Controls: These minimize energy consumption.
- Programmable Timers: Help maintain indoor conditions and reduce HVAC costs.
- Low-Power Modes: Advanced operators incorporate these to lower energy usage.
These operators are particularly beneficial in low-traffic scenarios, where they comply with ADA requirements and activate via push buttons. Their design ensures that they operate effectively while consuming minimal energy.
Bi-Parting Operators
Bi-parting automatic sliding door operators feature two panels that slide open from the center. This design creates a larger entryway, which is especially beneficial in environments with high foot traffic. The mechanism allows for smooth and efficient operation, accommodating two-way traffic effectively.
These doors are commonly found in various locations, including:
- Shopping malls
- Airports
- Healthcare facilities
In high-traffic areas, bi-parting automatic sliding doors significantly improve traffic flow. Their wider opening facilitates smoother movement, allowing people to enter and exit without delay. This feature is particularly advantageous in busy environments like retail stores and airports, where continuous foot traffic is the norm. The automatic operation of these doors also reduces physical contact, enhancing hygiene and minimizing disruptions.
The ability to accommodate large volumes of people makes bi-parting operators a preferred choice for many businesses. They not only enhance accessibility but also contribute to a more organized and efficient flow of movement. By minimizing bottlenecks at entrances, these doors help maintain a pleasant experience for customers and staff alike.
Benefits of Automatic Sliding Door Operators
Improved Accessibility
Automatic sliding door operators significantly enhance accessibility in various environments. They allow individuals with mobility challenges to enter and exit buildings without assistance. This technology aligns with regulations like the Americans with Disabilities Act (ADA), which mandates accessible design in public spaces. The global market for automatic door operators is projected to grow from USD 2.9 billion in 2024 to USD 5.6 billion by 2033, driven by increasing demand for accessibility.
Key ADA requirements for automatic sliding doors include:
| Requirement | Description |
|---|---|
| Clear Opening Width | Minimum of 32 inches when open to a 90-degree angle. |
| Maximum Operating Force | Limited to 5 pounds. |
| Door Operation Time | Must remain open long enough for individuals using mobility aids to pass through safely. |
| Hardware Height | Must be no higher than 48 inches from the ground. |
| Closing Speed | Doors must close relatively slowly if automatic. |
| Life Safety Codes | Limit use of horizontal sliding doors to rooms with fewer than 10 occupants unless a swing door is also present. |
These features ensure that automatic sliding doors provide a safe and convenient entry point for everyone.
Energy Efficiency
Automatic sliding door operators contribute to energy efficiency in buildings. They minimize air infiltration, which helps maintain stable indoor temperatures. This efficiency leads to lower heating and cooling costs. Automatic doors open only when needed, reducing the risk of energy loss compared to manual doors, which can be left open unintentionally.
The following table illustrates the energy efficiency of automatic doors compared to manual doors:
| Feature | Automatic Doors | Manual Doors |
|---|---|---|
| Energy Efficiency | Open and close only when needed | Can be left open, leading to energy loss |
| Climate Control Maintenance | Reduces risk of energy loss | Higher risk of energy loss in busy areas |
| Additional Features | Often include air curtains for efficiency | N/A |
Many businesses report decreased energy costs after installing automatic doors. These systems enhance the overall thermal envelope of buildings, contributing to better energy efficiency ratings. They also eliminate human error, such as leaving doors ajar, which can lead to unnecessary energy loss.
Enhanced Security
Automatic sliding door operators improve security in commercial settings. They can integrate access control systems that ensure only authorized personnel can enter specific areas. This feature effectively keeps unauthorized individuals out.
Common security features include:
- Keypad entry
- Key card access
- Biometric scanning
Regular maintenance of these systems is essential for their effectiveness in preventing unauthorized access. In high-traffic or sensitive facilities, such as banks and medical centers, security is paramount. Sliding automatic door locks enhance overall security and improve traffic management in commercial settings.
Aesthetic Appeal
Automatic sliding door operators significantly enhance the aesthetic appeal of buildings. They contribute to a stylish and contemporary look, making spaces more inviting. These doors can complement modern architectural styles and uplift the overall aesthetic of both interior and exterior environments. Here are some key aspects of their aesthetic appeal:
- Visual Enhancement: Automatic sliding doors create a sleek appearance that aligns with contemporary design trends.
- Customization Options: These doors offer various design choices, allowing them to match the specific architectural style of a building.
- Integration with Surroundings: Their design can harmonize with the surrounding environment, enhancing the overall visual impact.
Architects often incorporate automatic sliding door operators into modern building designs for their visual impact. The following table summarizes the features that contribute to their aesthetic appeal:
| Feature | Description |
|---|---|
| Visual Impact | Automatic glass doors provide a sleek and modern look, enhancing the overall aesthetic of buildings. |
| Functionality | They offer hands-free operation through motion sensors, improving accessibility and convenience. |
| Energy Efficiency | Designed to minimize air exchange, they help save on heating and cooling costs. |
| Natural Light | Allow high levels of daylight, reducing the need for artificial lighting and creating a welcoming atmosphere. |
| Safety Features | Equipped with sensors to prevent injuries, ensuring user safety while maintaining design integrity. |
In addition to their functional benefits, automatic sliding doors can incorporate advanced features that further enhance their aesthetic appeal. For instance, smart dimming glass can switch from clear to opaque, providing privacy and light control. Motion sensor systems allow for hands-free operation, improving user experience while maintaining a clean look. Furthermore, energy-efficient designs contribute to sustainability goals in modern architecture, making these doors not only visually appealing but also environmentally friendly.
Overall, the aesthetic appeal of automatic sliding door operators plays a crucial role in modern architecture. They not only enhance the beauty of a building but also improve functionality and sustainability, making them a valuable addition to any design.
Installation Considerations for Automatic Sliding Door Operators
Site Assessment
A thorough site assessment is essential before installing an automatic sliding door operator. This process ensures that the installation meets both functional and aesthetic requirements. Key factors to consider during the assessment include:
- Conduct precise measurements to determine the appropriate door size.
- Evaluate the environment to identify potential obstacles or hazards.
- Select the appropriate type of door based on traffic, usage, and design requirements.
These steps help ensure that the automatic sliding door operates smoothly and effectively in its intended setting.
Professional Installation vs. DIY
Choosing between professional installation and a DIY approach can significantly impact the performance of an automatic sliding door operator. Professional installation offers several advantages:
- Expertise: Professionals have the necessary training and experience to handle complex installations.
- Time Efficiency: They can complete the installation more quickly, minimizing disruption to daily operations.
- Warranty Protection: Many manufacturers require professional installation to maintain warranty coverage.
On the other hand, DIY installation may save costs but can lead to complications if not done correctly. It is crucial to weigh these factors carefully before making a decision.
Compliance with Regulations
Adhering to regulations and building codes is vital when installing automatic sliding door operators. Compliance ensures safety and accessibility for all users. Key regulations include:
| Regulation/Code | Description |
|---|---|
| 2021 International Building Code (IBC) | Specifies requirements for public entrances, including the need for full power-operated or low-energy power-operated doors in certain facilities. |
| Americans with Disabilities Act (ADA) | Sets design standards ensuring accessibility, such as a minimum clear opening width of 32 inches and a maximum operating force of 5 pounds. |
| ANSI/BHMA A156.10 | Addresses user safety and convenience, including requirements for control mats, sensors, and signage. |
To comply with these regulations, ensure that:
- Doors provide a minimum clear opening width of 32 inches when open to a 90-degree angle.
- The maximum force allowed to operate doors is 5 pounds.
- Automatic doors remain open long enough for individuals using mobility aids to pass through safely.
Following these guidelines not only enhances safety but also promotes accessibility for all users.
Maintenance Requirements for Automatic Sliding Door Operators
Regular Inspections
Regular inspections are vital for ensuring the optimal performance of automatic sliding door operators. Facility managers should conduct these inspections at least once every six months. During inspections, they should check for:
- Wear and Tear: Inspect components such as tracks, rollers, and motors for signs of damage.
- Sensor Functionality: Test sensors to ensure they detect motion accurately and respond appropriately.
- Door Alignment: Verify that the door aligns correctly with the frame to prevent operational issues.
Cleaning and Lubrication
Cleaning and lubrication play crucial roles in maintaining automatic sliding door operators. Dirt and debris can hinder performance, while proper lubrication reduces friction and wear. Follow these steps for effective maintenance:
- Clean Tracks and Sensors: Use a soft cloth to remove dust and debris from the tracks and sensors. This action ensures smooth operation and accurate sensor detection.
- Lubricate Moving Parts: Apply a silicone-based lubricant to the rollers and hinges. This practice minimizes friction and prolongs the lifespan of the components.
- Inspect Seals: Check weather seals for damage. Replace any worn seals to maintain energy efficiency and prevent drafts.
Troubleshooting Common Issues
Despite regular maintenance, issues may arise with automatic sliding door operators. Here are some common problems and their solutions:
| Issue | Possible Cause | Solution |
|---|---|---|
| Door does not open | Blocked sensors | Clear any obstructions from sensors |
| Door closes too quickly | Misaligned sensors | Adjust sensor positioning |
| Unusual noises during operation | Lack of lubrication | Apply lubricant to moving parts |
| Door opens unexpectedly | Faulty sensor or control system | Inspect and replace faulty components |
By addressing these common issues promptly, facility managers can ensure the longevity and reliability of automatic sliding door operators.
Automatic sliding door operators enhance convenience and accessibility in various environments. They operate through advanced mechanisms and sensors, ensuring smooth entry and exit. Proper installation and regular maintenance are crucial for optimal performance. Neglecting these aspects can lead to operational issues and safety concerns.
Businesses should consider automatic sliding door operators to improve accessibility for all individuals. These systems not only facilitate movement but also contribute to energy efficiency and security. Investing in this technology can significantly benefit both users and facilities.
FAQ
What are the common applications of automatic sliding door operators?
Automatic sliding door operators are commonly used in retail stores, hospitals, airports, and office buildings. They enhance accessibility and convenience in high-traffic areas, allowing smooth entry and exit for all individuals.
How do I choose the right automatic sliding door operator?
Selecting the right operator depends on factors such as traffic volume, door size, and environmental conditions. Consider consulting with a professional to assess your specific needs and ensure optimal performance.
What maintenance is required for automatic sliding door operators?
Regular maintenance includes inspections, cleaning tracks and sensors, and lubricating moving parts. Facility managers should conduct these tasks at least twice a year to ensure smooth operation and longevity.
Are automatic sliding doors safe for children and pets?
Yes, automatic sliding doors incorporate safety features like sensors and pressure detection systems. These features prevent accidents by stopping or reversing the door’s movement if an obstruction is detected.
Can automatic sliding doors be installed in existing buildings?
Yes, automatic sliding doors can be retrofitted into existing buildings. A thorough site assessment is necessary to ensure compatibility with current structures and compliance with safety regulations.
