What is an automatic door motor? It represents the fundamental mechanism powering automated entryways. These Automatic Door Motors provide significant convenience and enhance accessibility for all individuals. Understanding how do automatic door motors work is crucial for effective deployment. Proper Automatic Door Motor Installation ensures reliable operation and user safety. Different Types of Automatic Door Motors cater to various needs. Adherence to Automatic Door Motor Safety Standards is paramount for every system.
Key Takeaways
- Automatic door motors use electricity to move doors. They make entry easy for everyone.
- The main controller is like the door’s brain. It tells the motor when to open or close the door.
- Sensors help doors work safely. They detect people and stop the door from closing on them.
- Proper installation is very important. It makes sure the door works well and lasts a long time.
- Regular checks keep the door working smoothly. This helps avoid problems and keeps the door safe.

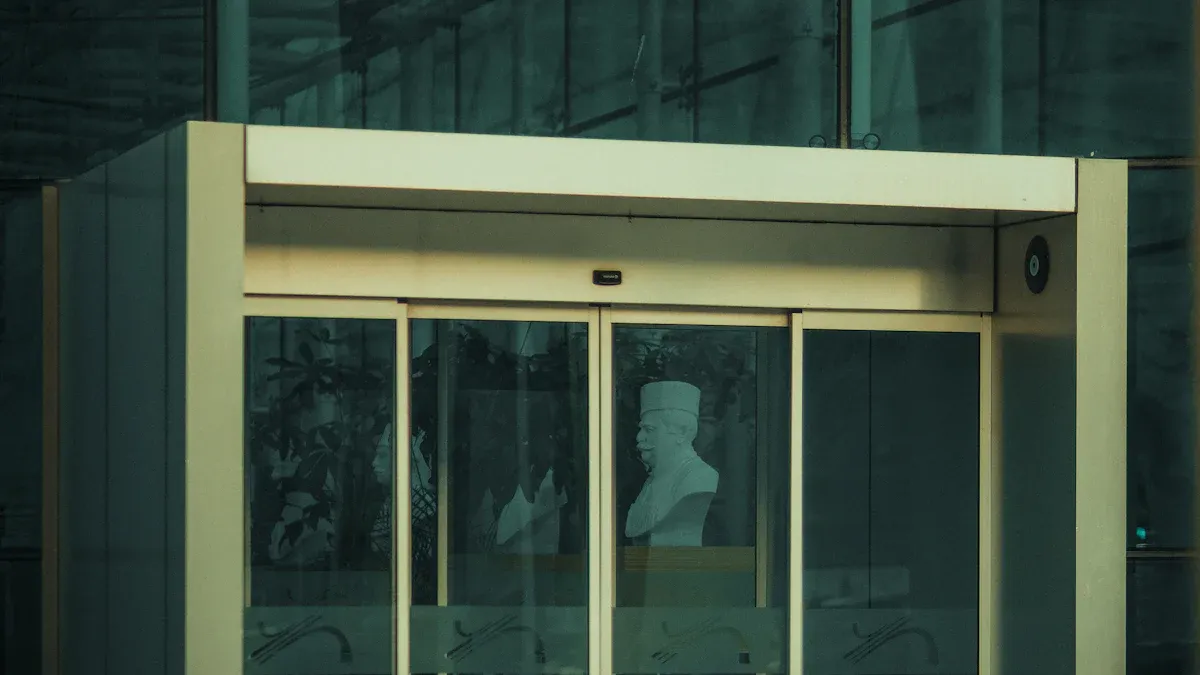

How Automatic Door Motors Function
Electro-Mechanical Automatic Door Motors
Electro-mechanical automatic door motors represent a common type of automated door system. These systems rely on electrical power to drive mechanical components, facilitating door movement. For automatic sliding doors, electromagnetic locks secure the belt, electric locks hold the door hanger, and motor locks provide additional security. Automatic hinged doors utilize electromagnetic door holders, electronic bolt locks, and electronic door openers. The electronic door opener’s force direction does not impede the door’s opening action, which prevents misoperation. Some systems incorporate a mechanical lock with a contact switch. This design combines the lock and switch, preventing misoperation by ensuring contacts cannot be made if the lock is not in an unlocked state.
Motor control circuits use smaller wires and reduced-amperage devices to control motors, which is more practical for larger horsepower motors. This approach reduces costs. Control circuits often operate at lower voltages than the motor itself, enhancing safety for operators and maintenance personnel. Fundamentally, a motor control circuit acts as a switch or a group of switches to activate or deactivate the motor. Devices like time clocks for pumps or radio signals for garage door openers exemplify automatic switches controlling motors. Many motors are controlled by computerized systems, solid-state logic controls, or PLCs. These systems use logic to control motor outputs via magnetic starters or relays.
The motor drives mechanical actions like the lock tongue’s rotation or push/pull to open or close the lock. Smart door locks use wireless communication, such as Wi-Fi, Bluetooth, or Zigbee, to receive external signals like fingerprints or APP instructions. These signals then command the motor. Most smart door locks are powered by built-in batteries. Motor design is often optimized for low power consumption to ensure battery life and compatibility. Different motor types serve various functions. A DC motor offers a simple design and high control accuracy, suitable for fast unlocking, such as fingerprint recognition. A stepper motor provides precise rotational control, ideal for positioning applications like lock cylinder placement. A brushless motor (BLDC) is efficient, quiet, and long-lasting, reducing friction loss and battery consumption. A servo motor offers high precision and feedback control, suitable for operations requiring exact adjustments of the lock cylinder.
The Model 4300 electro-mechanical automatic door opener requires 115vac 60hz 3amp service to the receptacle box. The motor itself is a 115vac 60hz permanent split capacitor, thermally protected type. The door operator needs 115 vac 60 Hz 3 amp service at the header location.
Electro-Hydraulic Automatic Door Motors
Electro-hydraulic automatic door motors combine electrical power with hydraulic fluid to generate motion. These systems offer distinct advantages over purely electro-mechanical types. Electromechanical systems often require significant current to maintain a load, leading to higher power consumption. Furthermore, their reliance on components like roller or ball screws for converting rotary to linear motion makes them susceptible to jamming under shock or excessive vibration, increasing the likelihood of downtime. Electro-hydraulic systems, particularly electro-hydrostatic types, overcome these issues. They are dependable and durable, suitable for both interior and exterior doors. These systems are ideal for low-traffic areas where automatic operation is not always needed.
Core Components of Automatic Door Motors
Automatic Door Motors consist of several essential components working in concert. Key elements include 24V brushless DC components, which provide efficient and reliable power. High-quality gearbox materials ensure durability and smooth operation. Many models incorporate helical gear transmission, which enhances power transfer and reduces noise. For automatic swing door motors, a dual gearbox design is often employed, providing robust and balanced performance. These components collectively enable the precise and controlled movement of automatic doors.
The Control System of Automatic Door Motors
Main Controller Directing Automatic Door Motors
The main controller acts as the central intelligence for automatic door systems. It directs the Automatic Door Motors and manages all operational aspects. This unit performs induction signal analysis, automatically opening the door when sensors detect people or objects. It also offers intelligent operation, adjusting door opening and closing frequency and duration based on environmental factors like temperature, humidity, and personnel traffic. For safety, the controller includes features such as anti-pinch, anti-collision, and anti-pressure mechanisms.
Furthermore, the main controller integrates various access control systems, including self-service bank card swiping, attendance machines, and remote controls. It also manages smoke alarms and language prompt functionalities. When verifying access, the controller receives credentials like RFID cards or biometrics. It then cross-references these with a stored access control database. Upon successful authentication, it signals to release the door’s lock mechanism. The system monitors and logs access events, recording timestamps and user details. It can also trigger alarms and send notifications for unauthorized attempts or prolonged door openings. In networked systems, it allows remote monitoring and management of access control across multiple entry points.
These controllers typically utilize intelligent microprocessor units, often 32-bit microprocessors. These advanced units feature self-diagnostic capabilities and self-monitoring operating sequences. They optimize traveling characteristics for low-noise operation and offer customizable functionalities, including self-learning for dependable operations and synchronized motion intervals. The microprocessors enable automatic reversal when encountering obstacles and intelligent adjustment of opening and closing parameters via a control panel without requiring extra programming. They also ensure compatibility with various optional access control accessories through multiple connectors.
Monitoring Automatic Door Motors Operation
The control system continuously monitors the operation of automatic doors. This monitoring ensures smooth functionality and identifies potential issues. The intelligent microprocessor units, with their self-diagnostic capabilities, constantly check the system’s health. They track operating sequences and door movements, ensuring everything functions within specified parameters. This proactive monitoring helps prevent malfunctions and maintains optimal performance.
The Role of the Belt System in Automatic Door Motors
The belt system plays a crucial mechanical role in automatic door operation. It transmits power from the motor to the door panels, facilitating their movement. Typically, a durable, reinforced belt connects the motor’s drive pulley to the door carriage. As the motor rotates, the belt moves, pulling or pushing the door panels along their track. This system ensures smooth, quiet, and precise door movement, contributing significantly to the overall efficiency and user experience of the automatic door.
Actuators and Their Interaction with Automatic Door Motors
Actuators serve as the crucial interface between users or the environment and the automatic door system. They initiate the door’s movement, ensuring convenience and accessibility. Understanding their types and functions is essential for proper system design and installation.
Knowing Act Actuators: Push Plates and Buttons
Knowing act actuators require a deliberate action from a user to trigger the door. These devices provide a clear signal for the door to open. Common types include:
- Wall- or jamb-mounted contact switches, such as push plates.
- Fixed non-contact switches.
- The manual action of pushing or pulling a door.
- Controlled access devices like keypads, card readers, and key switches.
Push buttons come in various sizes and shapes, mounting on walls, jambs, or bollards for easy accessibility. Touchless switches offer hands-free solutions, enhancing hygiene and convenience. Card readers and keypads are ideal for secure facilities, providing both access control and activation. Other options include circular or square press switches, frame-mounted press switches, and rail, post, or pull cord activations. Hands-free activation devices are also available, reducing germ spread with wired or wireless options and adjustable activation ranges.
Unknowing Act Actuators: Motion and Presence Sensors
Unknowing act actuators detect a person’s presence or motion without requiring direct interaction. These sensors provide seamless and automatic door operation. Motion sensors utilize various technologies to detect movement:
| Sensor Model | Technology | Mounting Height | Detection Range (Motion) |
|---|---|---|---|
| SSR-3F | Microwave, Active Infrared | 7 feet | 13 feet wide x 8 feet out from door face |
| HR-Robus | Microwave | High-mount (up to 23 feet) | Detects vehicle/pedestrian motion (approach/depart) |
Infrared motion sensors detect movement by emitting infrared beams and measuring reflection or interruption. They are reliable and cost-effective. Optical sensors use light-based technology to measure changes in light intensity or analyze laser reflections, offering accurate detection. Radar movement sensors utilize radar technology to detect movement, including direction, providing long-range detection.
Presence sensors play a critical safety role. They detect an object or person within a defined detection pattern, preventing the door from striking them during operation. For swing doors, the BEA Bodyguard overhead presence sensor stops a closed door from opening or an open door from closing if a person is in its detection zone. The MS Sedco SSS-5, a door-mounted presence sensor, uses active infrared and Position Sensitive Detection (PSD) technology. It senses a person’s presence in the path of a swing door, slowing or stopping the door during opening, or reopening it if it is closing.
How Actuators Trigger Automatic Door Motors
Actuators initiate the door’s operation by sending electrical signals to the main controller. Knowing act actuators, such as push plates or keypads, can be hardwired or send wireless signals upon user activation. Motion sensors, which users unknowingly activate, send signals to the automatic door operators. These sensors typically mount above the door to track movement.
The electronic control system receives these signals, whether from a basic switch, a remote control, or an integrated smart building system. Upon receiving a trigger, the control system processes the input and then commands the Automatic Door Motors to open or close the door. This seamless communication ensures the door responds promptly and safely to activation requests.
Essential Installation Tips for Automatic Door Motors
Proper installation forms the bedrock of a reliable and safe automatic door system. Meticulous attention to detail during this phase prevents future malfunctions, reduces maintenance needs, and ensures optimal performance. Installers must follow best practices to guarantee the longevity and efficiency of the entire setup.
Ensuring Proper Alignment of Automatic Door Motors
Proper alignment is paramount for the efficient and safe operation of automatic doors. Misalignment causes excessive wear on components, leading to premature failure and increased maintenance costs. Installers must use precision tools, such as levels and plumb bobs, to ensure all components are perfectly vertical and horizontal. They carefully measure the track system to guarantee parallelism, allowing door panels to glide smoothly without friction or binding. Adjusting the motor mounting brackets precisely ensures the motor’s drive mechanism aligns correctly with the belt system. This meticulous attention to detail prevents operational issues and extends the lifespan of the entire system.
Securing Automatic Door Motors with Fasteners
Properly securing Automatic Door Motors is critical for system stability and safety. Installers must select fasteners appropriate for the specific building material, whether wood, concrete, or steel. Manufacturer guidelines provide essential recommendations for fastener type and size. For masonry or concrete structures, installers use robust anchors to ensure a firm grip. They tighten all fasteners securely, but avoid overtightening, which can strip threads or damage components. Regular inspections should include checking for any loose connections, which could compromise the motor’s stability over time. Anti-vibration washers can further enhance security by preventing fasteners from loosening due to constant door movement.
Importance of a Sturdy Door Frame for Automatic Door Motors
A sturdy door frame provides the foundational support necessary for automatic door systems. The frame must bear the combined weight of the door panels and the motor assembly, while also withstanding the dynamic forces generated during operation. A weak or damaged frame can lead to structural fatigue, misalignment, and potential safety hazards. Installers ensure the frame material possesses adequate strength, often opting for steel or reinforced aluminum. They verify proper anchoring of the frame to the building’s main structure, including robust header support. Before installation, technicians inspect the frame for any signs of warping, rot, or existing damage. Reinforcing the frame might be necessary to meet the demands of the automatic door system and comply with local building codes.
Integrating Safety and Power for Automatic Door Motors
Selecting Compatible Door Hardware for Automatic Door Motors
Selecting the correct door hardware ensures seamless integration and optimal performance for automatic door systems. Installers consider various automatic door accessories, including the automatic door motor itself, automatic sliding door operators, and automatic swing door openers. Compatible hardware also includes essential components like push hardware and pull hardware, which facilitate manual interaction when needed. For advanced systems, RF radio frequency stainless steel pushbuttons and integral RF receivers offer wireless activation. Dynamic braking modules, electronic back check brakes, and shock-absorbing door arms enhance safety and control. Proper mounting hardware secures all components firmly. LCN provides automatic operators and accessories engineered for precision, offering a low-cost, high-reward automation option for various single-door openings, including bathrooms, ADA student housing, classrooms, and private offices.
Wiring and Power Supply for Automatic Door Motors
Proper wiring and a stable power supply are fundamental for automatic door motor operation. In the USA, standard requirements for automatic door motor power supplies are 120VAC, 60Hz, single phase. A specific model, the Commander automatic door opener, draws approximately 1 amp. However, other brands may have different amperage draws. Imported Chinese door openers typically require 220VAC, 50Hz. Automatic door motor installations typically involve mounting the drive unit or motor, installing presence sensors and safety beams, connecting power wiring and control wiring, and adding access-control equipment if required. They also include setting up emergency break-out mechanisms or manual override features. Typical wiring diagrams for motor controls include ladder diagrams, connection diagrams, pictorial diagrams, and combination diagrams. For sensor installations, technicians follow the wiring diagram included with the sensor kit, connecting wires from the sensor to the control unit and door opener. They use wire cutters/strippers to remove insulation from wire ends and securely connect wires with appropriate connectors or by twisting and covering with electrical tape. All connections must be tight and properly insulated to prevent electrical shorts.
Safety Sensor Integration with Automatic Door Motors
Integrating safety sensors with automatic door motors is crucial for preventing accidents and ensuring user protection. These sensors create a safe operational environment. Common types include approach sensors, threshold protection sensors, and egress sensors. Mechanical pressure sensors activate when the closing door encounters an obstacle, triggering the door to stop and reverse. Photoelectric sensors, also known as "safety eyes," install on either side of the garage door. They emit an invisible beam. If the beam is interrupted while the door is closing, the door automatically reverses. Motion sensors detect movement in the garage, preventing the door from closing if motion is detected. Force sensors integrate into the garage door opener. These sensors measure the force required to open and close the door. If the force exceeds a certain threshold, the door stops and reverses.
Maintaining and Troubleshooting Automatic Door Motors
Regular Maintenance for Optimal Performance of Automatic Door Motors
Regular maintenance ensures the longevity and efficiency of automatic door motors. For high-use residential automatic doors, annual servicing is recommended. This maintains moving parts and identifies potential issues early. Doors used less frequently, such as those on detached garages, may suffice with professional service every two years. However, a check-up is still advised if the door operates in extreme weather or has not been serviced in the last 3,000 cycles. Even light usage can stress electrical components in heavily automated systems. This necessitates a tailored service schedule. It ensures long-term reliability and prevents unexpected outages. Inspections every six months are recommended for garages serving as primary entrances. This ensures consistent operation and home security. It addresses potential vulnerabilities like worn seals, broken springs, or compromised opener systems. Routine maintenance includes lubricating moving parts and inspecting for loose connections. Checking for dust buildup and rust is also important. These can negatively impact performance. Technicians verify the opener receives power and check the circuit breaker. They test remote and wall controls, replacing remote batteries and inspecting wall control wiring. They also clean and realign safety sensors.
Understanding Industry Safety Regulations for Automatic Door Motors
Industry safety regulations govern automatic door motor installations. These regulations ensure user protection and system reliability. Federal regulation 16 CFR part 1211 specifically details safety standards for automatic residential garage door operators. UL 325-2017 is referenced within 16 CFR part 1211 for compliance. This standard covers electronic or solid-state circuits, particularly for entrapment protection and general testing parameters. It fulfills requirements for reducing risks of fire, electric shock, or injury. UL 991 is also referenced for electronic or solid-state circuits. This standard performs backup, limiting, or other functions to reduce injury risks, including entrapment protection circuits. Compliance with UL 991, including environmental and stress tests, is required.
Common Issues and Troubleshooting for Automatic Door Motors
Automatic door motors can experience various issues. Common mechanical failures include inconsistent door movements and loud grinding noises during operation. Doors may operate too slowly or no longer operate smoothly. Strange noises during operation often indicate a problem. Broken rollers can cause automatic sliding doors to move slowly or not open at all. Physical impact or prolonged wear and tear can cause this. Rollers help slide the door as the motor mechanism moves the belts. Electrical issues also occur. These include sluggish movement, stopping or hesitation during movement, and unusual noises like grinding or clunking. Power supply issues, such as insufficient or unstable power, faulty outlets, or incorrect wiring, can cause problems. Wiring and connection problems, like loose, damaged, or frayed wires, are also common. Faulty control buttons and sensors can send incorrect signals to the motor. Incorrect control settings or error codes displayed by diagnostic features indicate motor problems. Malfunctioning safety features, such as safety beams or pressure sensors, also affect motor operation.
Automatic door motors function via electro-mechanical or electro-hydraulic mechanisms. Intelligent microprocessors direct their operation, and various actuators trigger door movements. Proper installation is paramount; it ensures both user safety and extended system longevity.
Informed decision-making, rooted in understanding these operational principles, guarantees reliable and efficient automatic door system performance. This knowledge is essential for effective selection, installation, and maintenance.
FAQ
What is the primary function of an automatic door motor?
An automatic door motor provides the power to open and close automatic doors. It converts electrical energy into mechanical motion. This mechanism ensures convenient and accessible entryways. The motor works with a control system to manage door movement precisely.
How do motion sensors contribute to automatic door operation?
Motion sensors detect movement near the door. They send signals to the main controller. This action triggers the automatic door motors to open the door. These sensors allow for hands-free and seamless entry. They enhance user convenience and accessibility.
Why is a sturdy door frame essential for automatic door motor installation?
A sturdy door frame supports the weight of the door panels and motor assembly. It withstands dynamic forces during operation. A robust frame prevents misalignment and structural fatigue. This ensures the automatic door system’s long-term stability and safety.
What role do safety sensors play in automatic door systems?
Safety sensors prevent accidents by detecting obstacles in the door’s path. They stop or reverse the door’s movement. This protects users from entrapment or collision. Integrating these sensors ensures a safe operational environment for everyone.
How often should automatic door motors receive maintenance?
High-use automatic door motors benefit from annual servicing. Less frequently used doors may require professional service every two years. Regular maintenance identifies potential issues early. It ensures optimal performance and extends the system’s lifespan.
