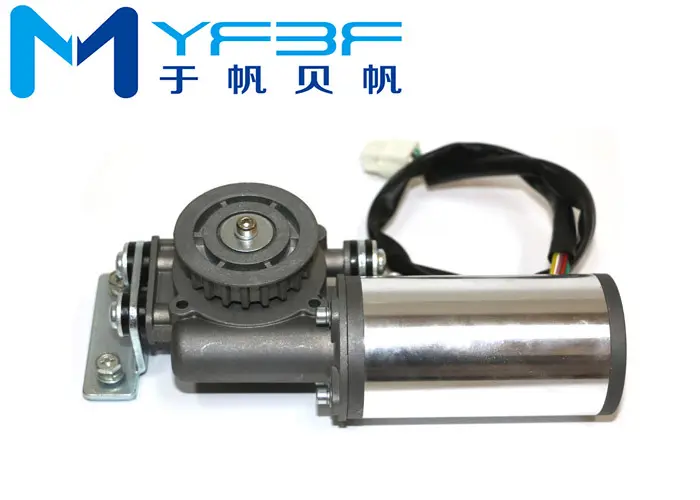

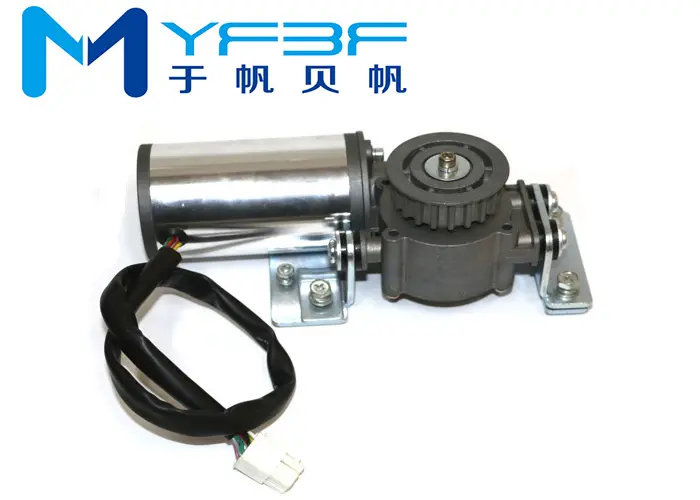

YF150 Automatic Door Motor

Short Description:

YF150 Automatic sliding door motor is widely used in automatic sliding door operators. It is 24V 60W brushless DC motor. The motor is silence during working.

Description

Brushless motor provides power for automatic sliding doors, with silent operation, has big torque, long service life and high efficiency. It adopts European technology to integrate motor with gear box, which offers strong driving and reliable operation and increased power output, it can adapt to a large doors. Helical gear transmission in the gear box ensures the stable and reliable operation, even used for heavy door, the whole system operates easily.

Drawing

Feature description

Motor color can be customized according to different customer requirements.

Brushless DC motor, small size, high power, low noise operation;

Automatic multi-functional motor, motor body and gear box are integrated, to avoid small belt drive vibration noise;

Design of worm gear transmission, high transmission efficiency, large output torque, low noise;

With Hall signal output, accurate control. Connection: JST terminal used in Japan;

Zinc alloy synchronous pulley, with the characteristics of light weight, good absorption, aging resistance, low temperature and other characteristics, effectively reduce the running process of rolling friction noise;

Installation is simple, safe, small size, with the installation bracket.

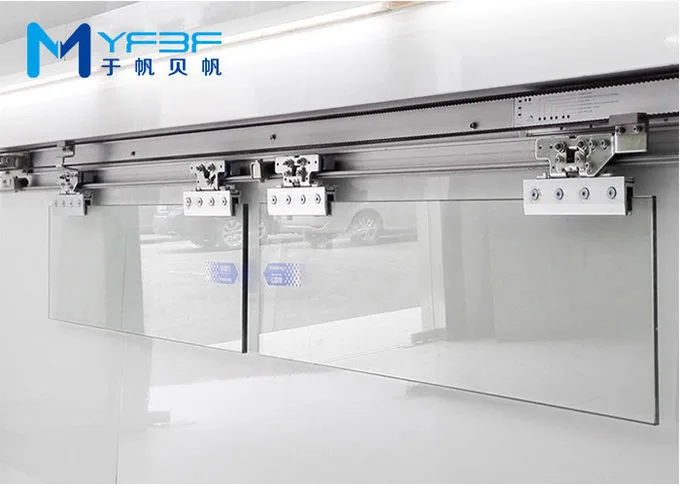

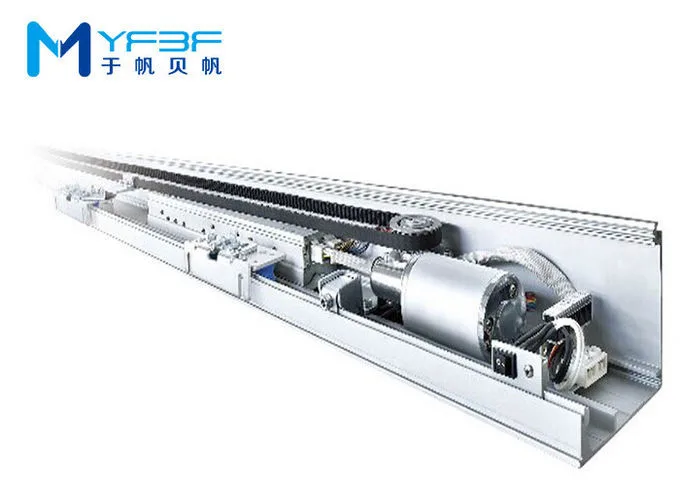

Applications

Specifications

Brand	YFBF
Model	YF150
Rated Voltage	24V
Rated Power	60W
No-load RPM	3000RPM
Gear Ratio	1:15
Noise level	≤50dB
Weight	2.5KGs
Certificate	CE
Lifetime	3million cycles, 10 years

Competitive Advantage

With Brushless DC technology, Lower Noise than brush motor. It can be with better reliability.

Brushless Motor has LONGER Working Life than Brush motor.

Small Volume, Strong Power, Powerful working force.

It is make with high-stregth alloy material, strong and durable.

Fully sealed structure, No OIL LEAKING.

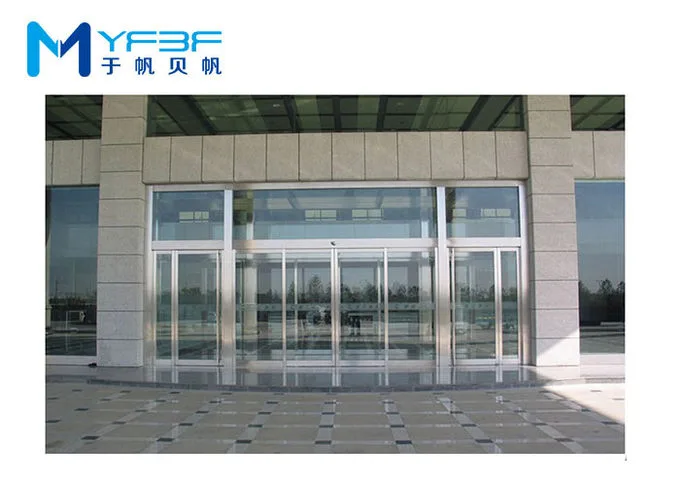

Widely used in Automatic Door openers, including Automatic Sliding Door opener, Swing Door opener, Curved Door Operator, Folding Door systems, Hermetical Door Operator, Telescopic Door Opener, Revolving Door and etc, which are installed in hotels, airports, office building, shopping mall, hospitals and etc.

Commerce Clause

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	Stardard Carton, 10PCS/CTN
Delivery Time:	15-30 Workdays
Payment Terms:	T/T, WESTERN UNION, PAYPAL
Supply Ability:	30000PCS PER MONTH
