■ Adopt Germa n receiving filter, decoding and amplification system to effectively solve the problem of anti-n atural sun light interfere nee.
■ Transmitting head adopt low consumptio n high pulse transmitting tech no logy, far transmitting distance, long service life.
■ lt has a design for comnecting and outputing single or double groups of transmitting and receiving lenses respectvely, and the connecton is good inshielding. lt can control single light beam, or control dual light beams.When the light is blocked, the output can be flexible choice of normally open or normally closed 8ntact signal.
■ Wide voltage input design, AC/DC 12-36V power input.
■ With receiving head short 8nnection fault alarm function

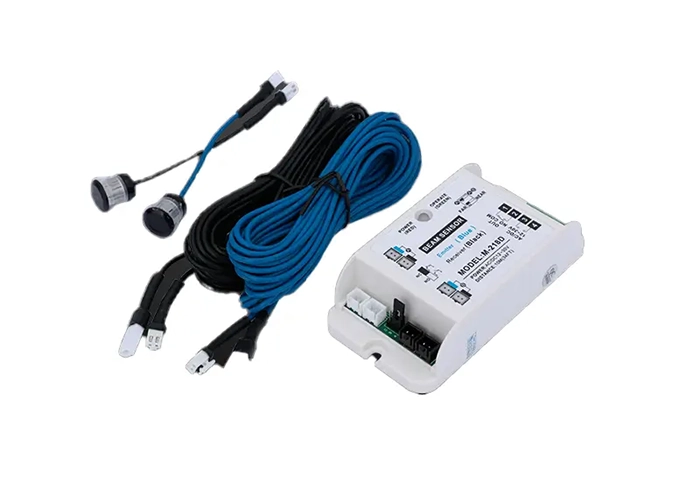

Note: Transmitting electric eye(Blue cable), Receiving electric eye(Black cable).
| Power supply: AC/DC 12-30V | Receiving cable length: 5.5 meters (black) |
| Static current 18mA | Beam light: Single beam / double beam light |
| Action current: 58mA | Working temperature: -42°C-45°C |
| Max matched distanee: 10 meters | Working humidity: 10-90%RH |

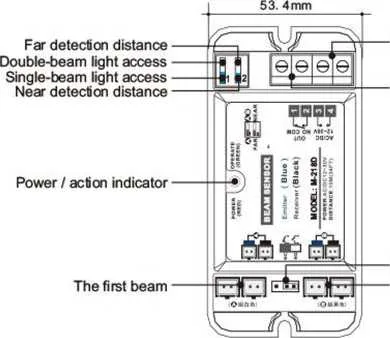

| Output connect: NO/NC selection by dial switch | Dimension (main controller): 105.5(L)x53.4(W)x28.5(H)mm |
| Transmitting cable length: 5.5 meters (blue) | Dimension (Electric eye): 19(L)xl3(D)mm |
