(1).This sensor integrates the motion and safety functon by infrared technology. is applied to the automatic door for opening and safety function.Eficientand precise to control the inductive range.infrared ant-pinch function adopt background self-eaming function, auto adapt to various occassions
intelligently.
(2).Automatic and rea-time accurate compensation for time drift of the backround,sel-corection due to changes in various external factors (such as:vibration, deformation, gradual shift light and dark, and sunlight, etc.) to ensure the long-term and reliable operation of the detector.

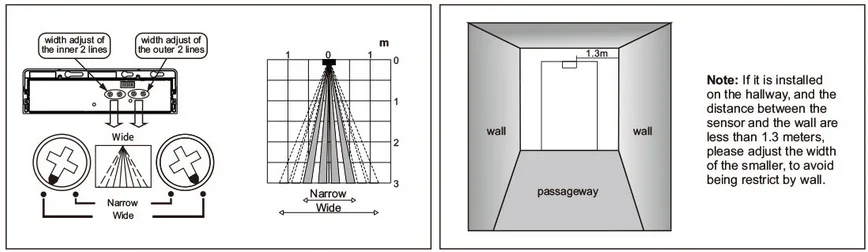

Width adjustment of the inner or outer 2 lines:
| Power input: | AC/DC 12 24V(±10% ) | Quantity of ray: | 1 line for presenee, 4 emits, 16 spots3 lines for motion, 12 emits, 48 spots |
| Cable length: | 2.5m | ||
| Signal output: | Relay, 1 for motion, 1 for presence | SelMeaming time: | 10s |
| Max installation height: | 3000mm | Operation indicate: | Standby by green led, motion by yellow led, |
| Static current | 30mA(DC12V) |
Presence by red led |
|
| Action current: | 110mA(DC12V) | Temperature: | -40°060°C |
| Cover | ABS | Detection range: | 1600(W)x800(D)mm |
| Ray type: | Infrared modulated light | Respond: | M 100ms |
| Ray source: | Infrared 940nm | Dimension: | 229(L)x67(W)x41 (H)mm |
| NO. | ITEM | PCS | Remark |
| 1 | Main body | 1 | |
| 2 | Keys | 2 | Key switch (M-240, M-242) with keys, button switch without key |
| 3 | Screws bag | 1 | |
| 4 | Instructions | 1 |
